70m Trimaran Superyacht

An evolution in fuel efficient superyacht design.

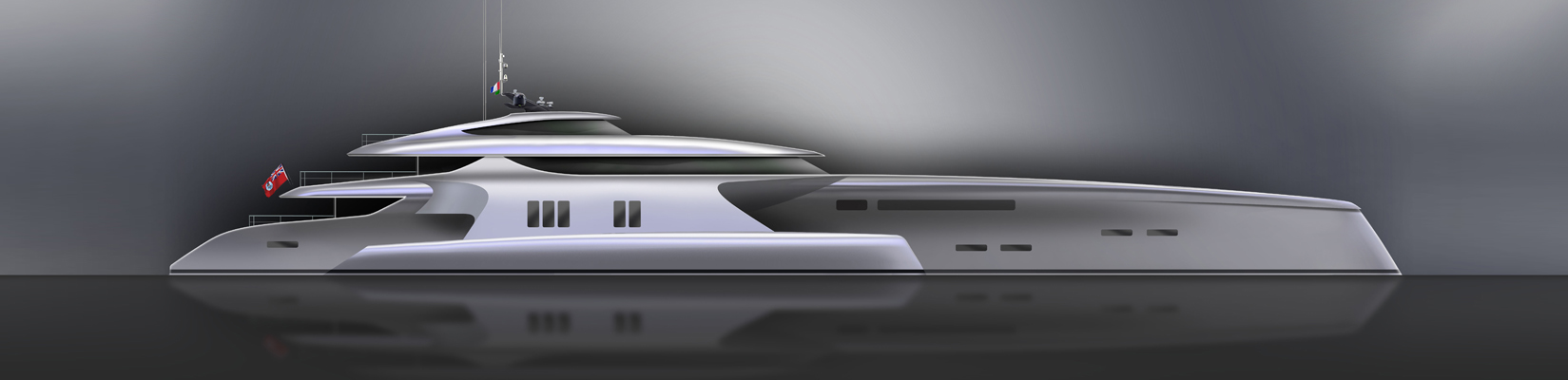

The Shuttleworth 70M with her sleek aerodynamic exterior and cutting edge naval architecture offers unrivalled stability, seakeeping and efficiency. At 14 knots her range will be in excess of 7,000nm, and her top speed of 25 knots can be increased to 30 knots with alternative engine options. She is a ground-breaking ocean explorer, representing an evolution in fuel efficient superyacht design.

Her luxurious interior accommodates 12 guests, 14 crew and has an entire deck dedicated to the owner. At 70m and above the wings can be used for accommodation allowing us to create a living space on the main deck that makes full use of the vessel's 23m beam, and is unrivalled on monohull vessels of similar length.



  • 7,000nm range at 14 knots
  • 25 knots top speed
  • Exceptional seakeeping and stability
  • Unrivalled fuel efficiency
  • Private owner's deck + 10 guests + 14 crew

Award Winning Design

All our latest trimaran designs are based on the award winning naval architecture used to create the 42.5m trimaran Adastra. Unlike a monohull, the shape of the multi-hull vessels mean they require no additional stabilisation to reduce roll. The slender, shallow draught hull forms are designed to slice through waves with minimal resistance, reducing fuel consumption, improving passenger comfort and enabling faster transit in rough conditions. Using state of the art composite engineering we have achieved the light weight required for exceptional fuel efficiency and performance, as well as the strength and rigidity suitable for heavy weather ocean capability. Aerodynamics and hydrodynamics above the waterline were carefully considered as we developed the overall exterior shapes and we kept the vessels streamlined for both air and water passing over the structure. The smooth, seamless, unbroken surfaces also help to reduce weight as the outer-skin forms part of the structure to absorb torsional loads.

Adastra has now covered 14,000 miles at sea and has proven herself to be a very comfortable and exceptionally fuel efficient ocean going vessel. She can cruise at 17 to 20 knots in most conditions, and has weathered 50 knot winds and seas up to 4 metres. She is incredibly stable and comfortable at rest and rolling is virtually eliminated by the outriggers.

On winning the 2013 Showboats award for naval architecture, the judges stated "This yacht will have the best performance in the most sea states of all those presented"

To find out more about the award winning naval architecture used in these designs read the article "Adastra - The search for a seakindly fuel efficient vessel". Read more.

Accommodation Layouts

The layout of the Shuttleworth 70M has been designed to optimse guest privacy and comfort with careful consideration given to the flow of passengers throughout the vessel. A central column houses separate crew and guest staircases, a lift and technical area. This allows the crew to move independently between decks without entering the guest space, maintaining a maximum sense of privacy even though there are 14 crew operating the vessel.

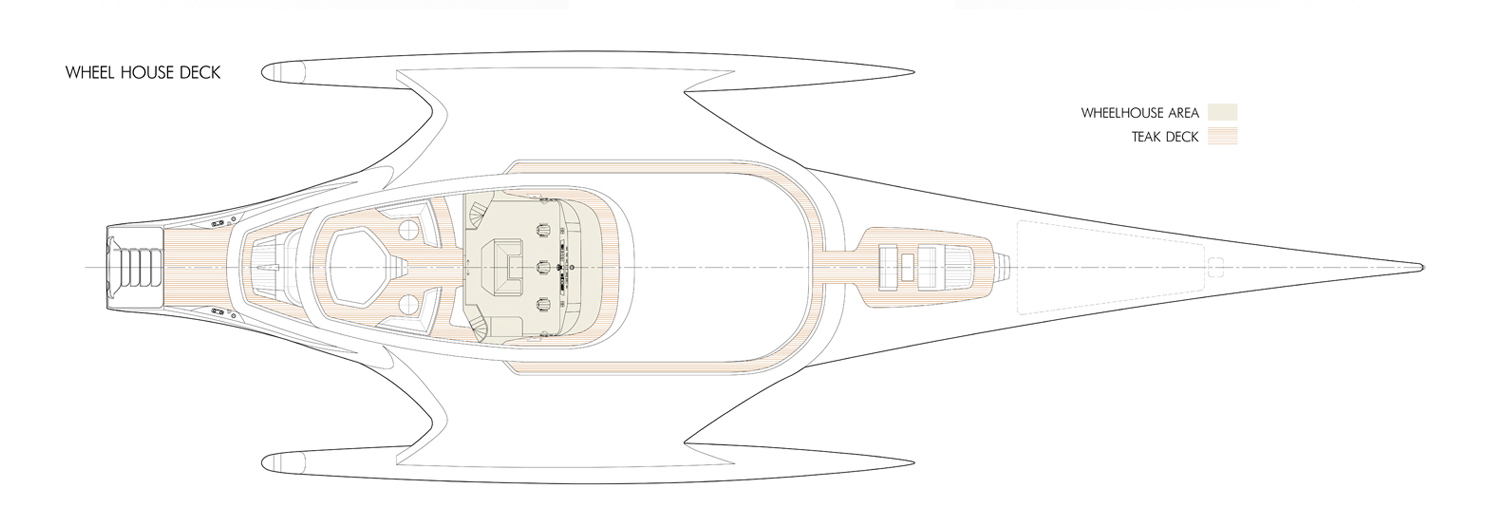

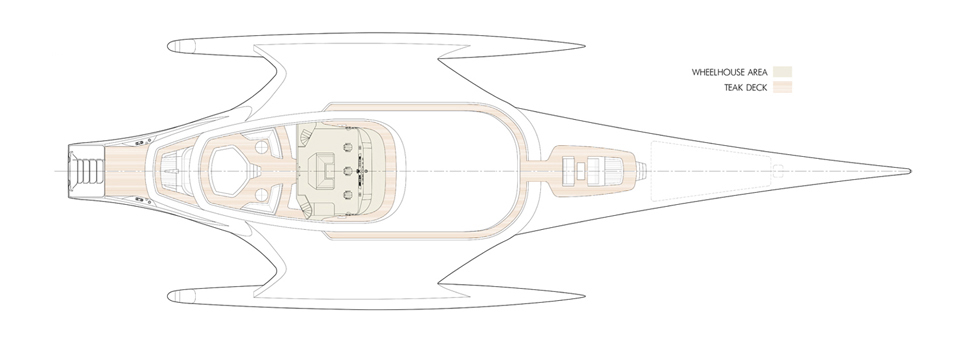

Wheelhouse Deck

An external walkway around the bridge deck gives the crew clear visibility for docking and maneuvering. A forward facing sofa behind the helm station provides a relaxing space for guests to observe operation of the vessel, and the aft deck has a large sun pad with optional spa pool, seating and a bar.

Wheel House Deck

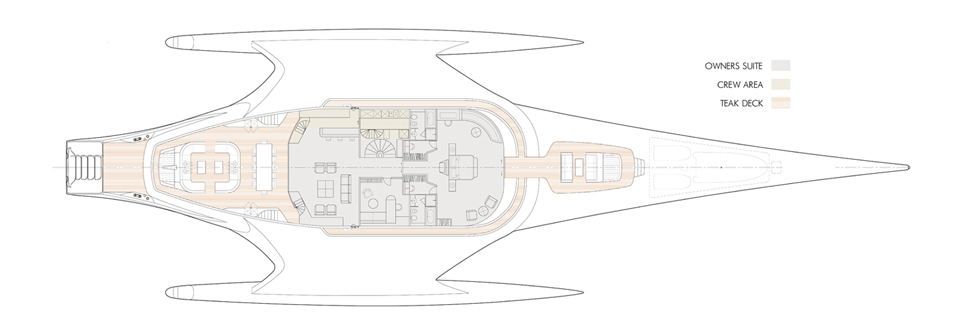

Owner's Deck

The owner's suite encompasses the entire upper deck and includes an office, lounge, forward facing bedroom with spectacular views and his and her changing and bathrooms. A sliding door through the forward panoramic window leads to a lounge area and foredeck sunbed. Steps leading onto the bow give access to a SOLAS rescue boat and two jet skis which are housed in an under deck locker. The aft deck offers outside dining as well as lounge seating, and day beds with fantastic views facing aft.

Owners Deck

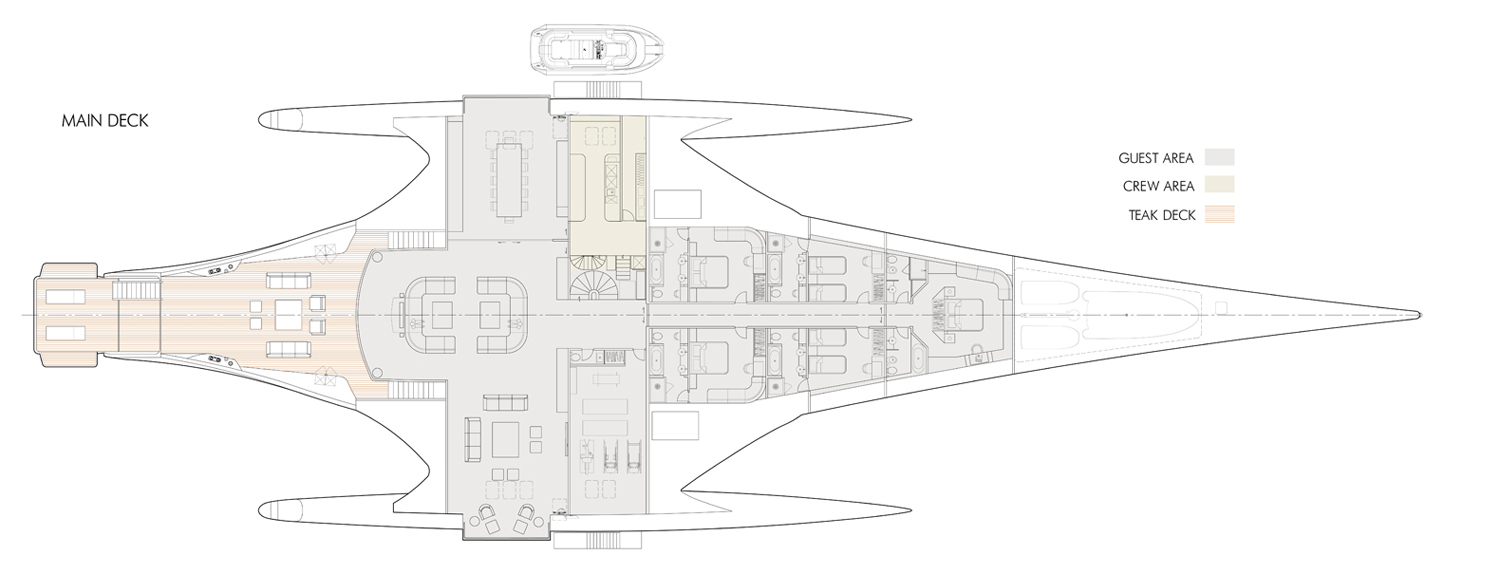

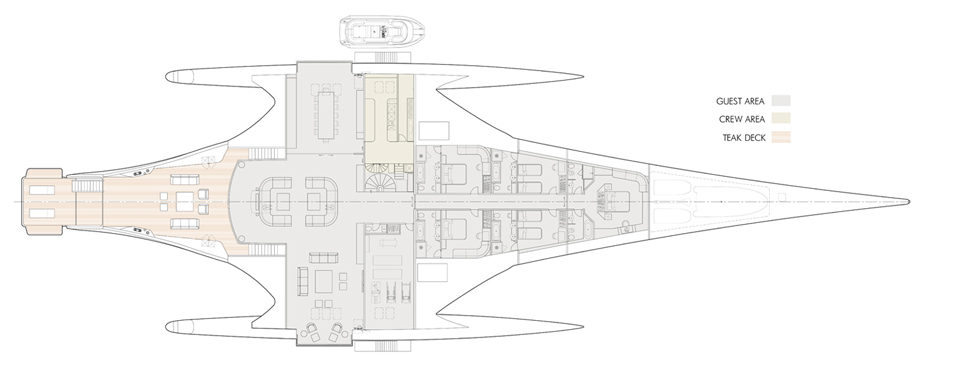

Main Deck

The main deck has a large lounge and dining area aft, a gym, four guest cabins and a VIP suite in the bow. The dining room can be opened up to the lounge to create an expansive (21m wide) open plan living space. Fold out balconies in the wings that look out each side to the sea create a spacious and open feel to the whole area. Access to the outriggers and side boarding ladder is through pop-out doors located alongside the fold out balconies.

Main Deck

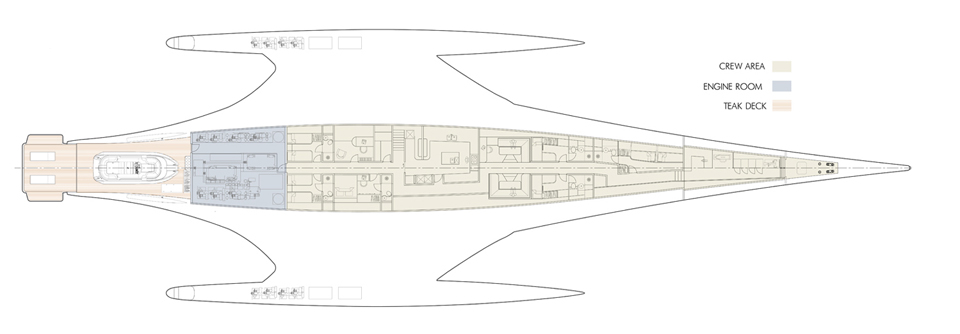

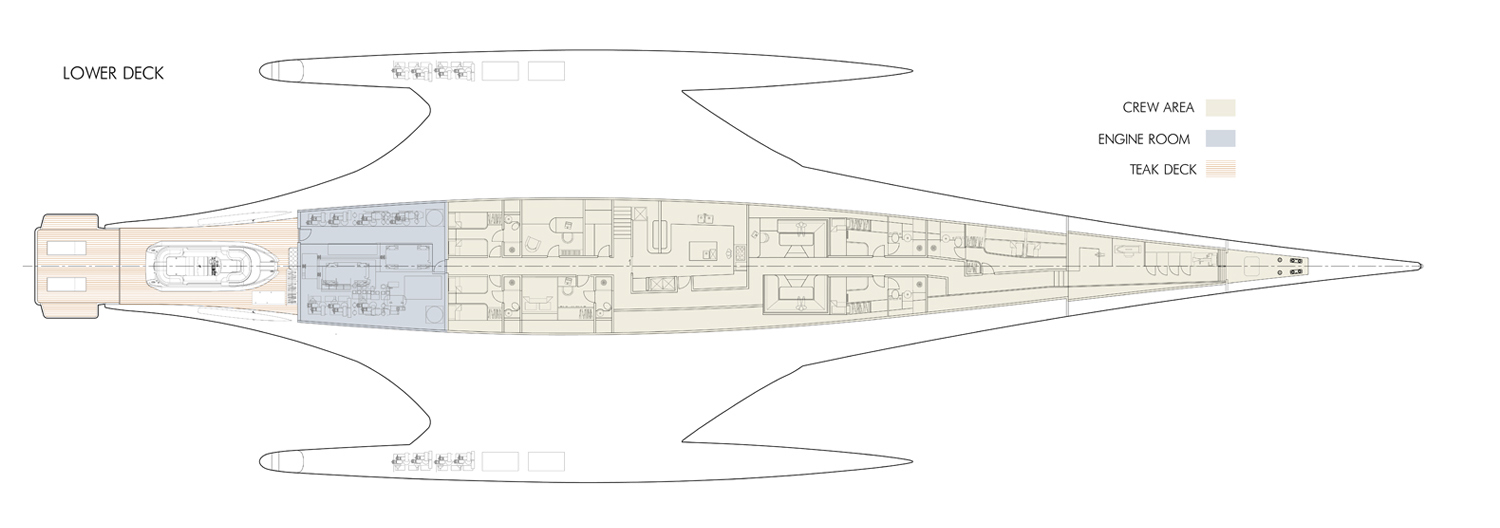

Lower Deck

The lower deck accommodates 14 crew, galley, stores, crew gym, laundry area, workshop and engine room. The aft garage houses a demountable 16ft Hobie cat, 7.5m tender and a dive store with a fold beach and dive platform.

Lower Deck

70m Technical data

  • General
  • Length Overall 70m
  • Beam 23m
  • Draft 2m
  • Hull Construction Composite (Glass/Aramid/Foam)
  • Deck Construction Composite (Carbon/Nomex)
  • Performance
  • Speed Max 25 knots (30 knots with alternative engine option)
  • Speed Cruising 17 knots
  • Range at 14 knots 7,000nm
  • Accommodation and Tenders
  • Owner and Guests 12
  • Crew 14
  • Tenders 7.1m and 4.9m(SOLAS)RIBS
  • Hobie Cat 1 x 16ft
  • Jet Skis 2 x Yamaha GTX
  • Design
  • Exterior Styling Shuttleworth Design Ltd
  • Naval Architecture Shuttleworth Design Ltd
  • Structural Design Shuttleworth Design Ltd
  • Interior Layout Shuttleworth Design Ltd
