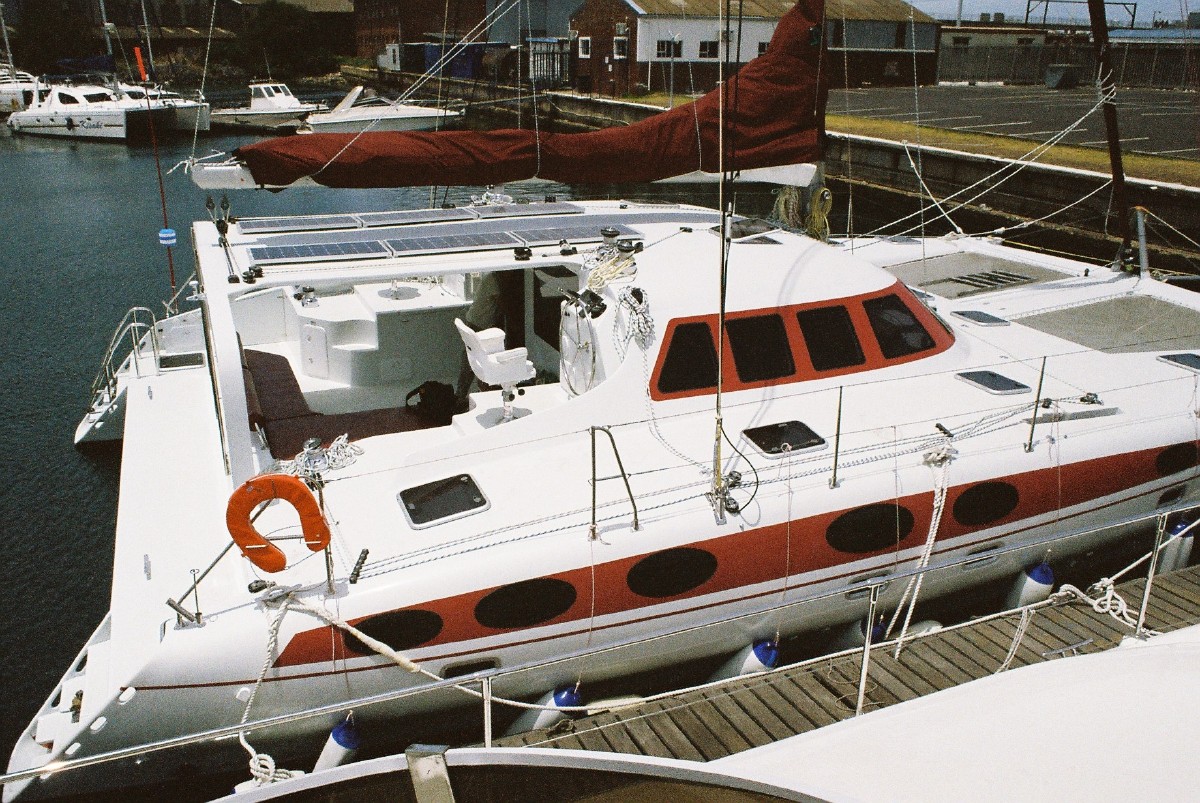

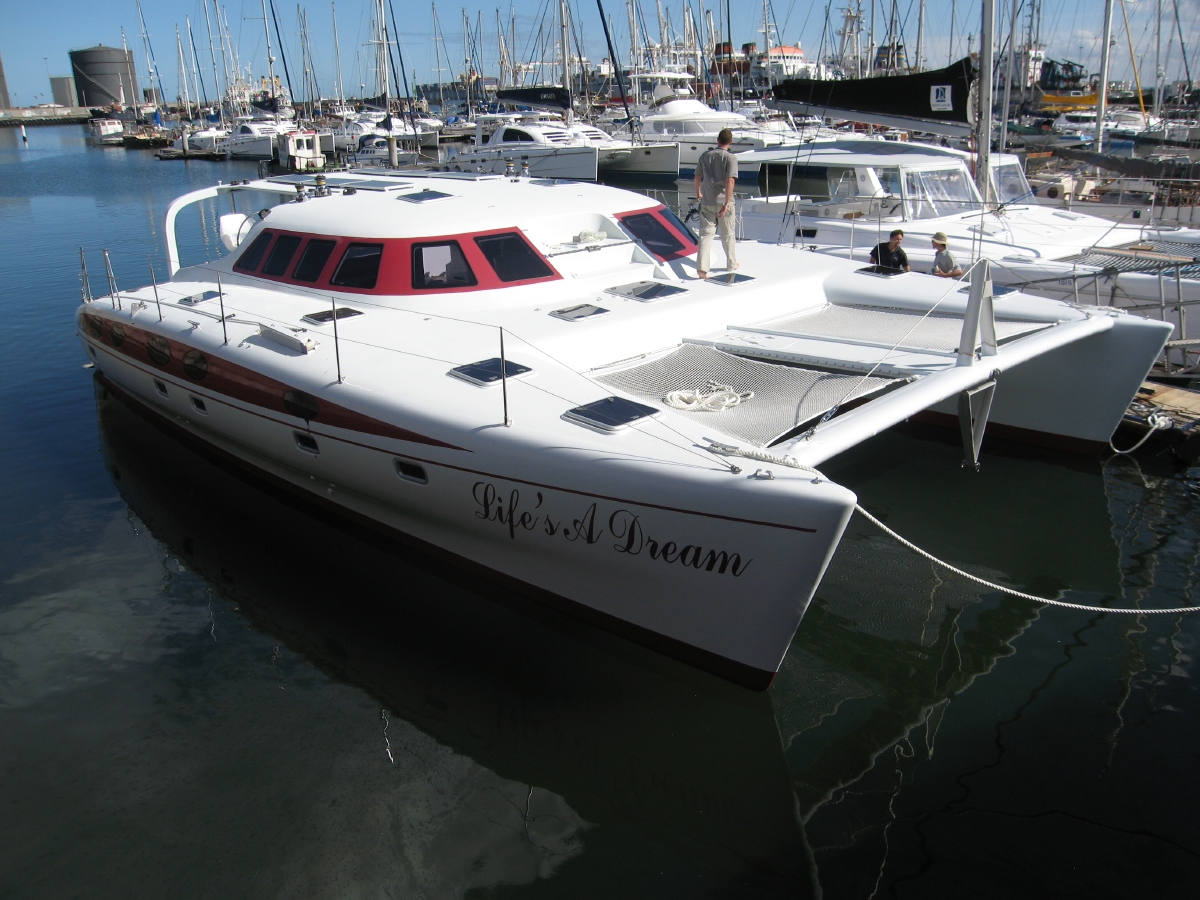

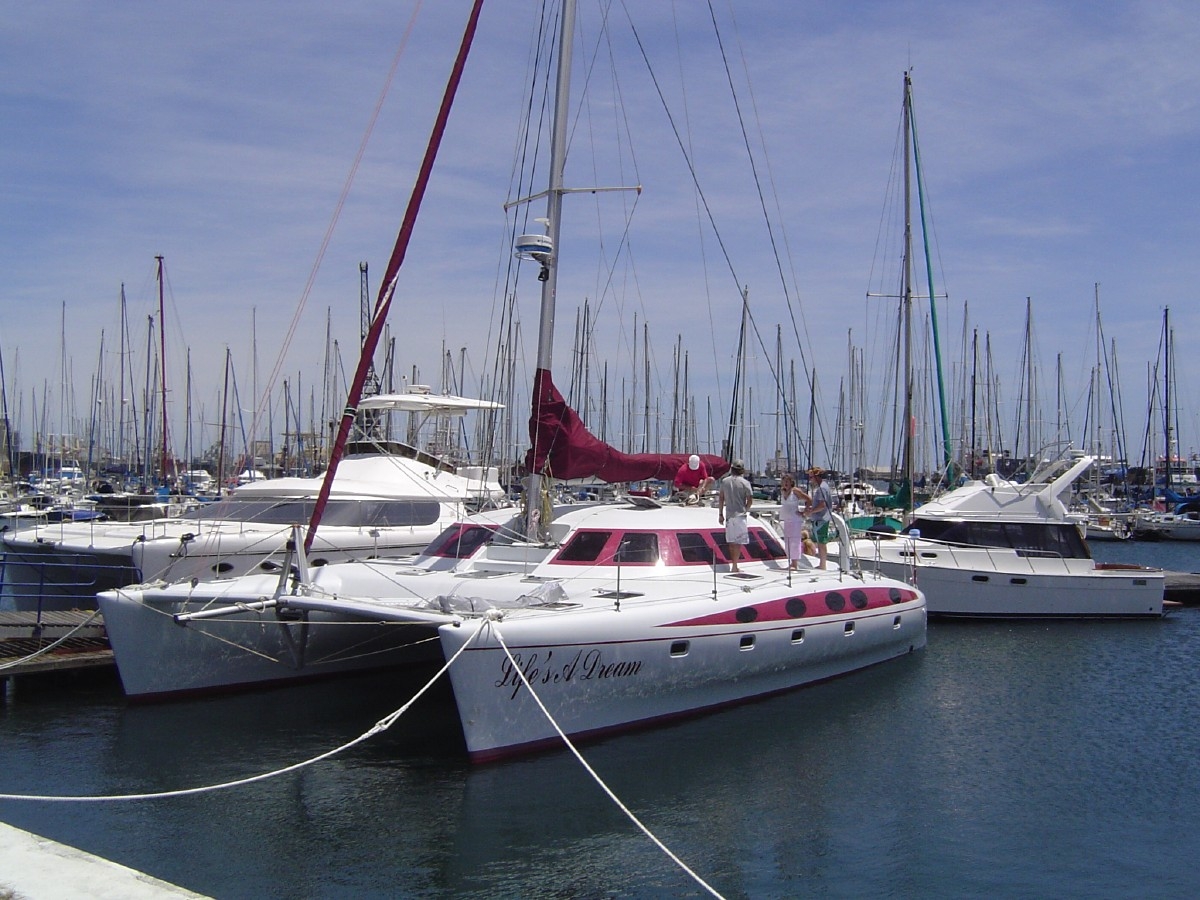

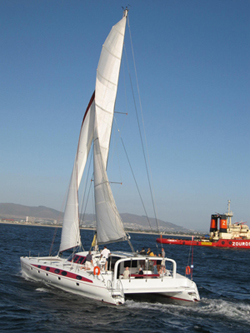

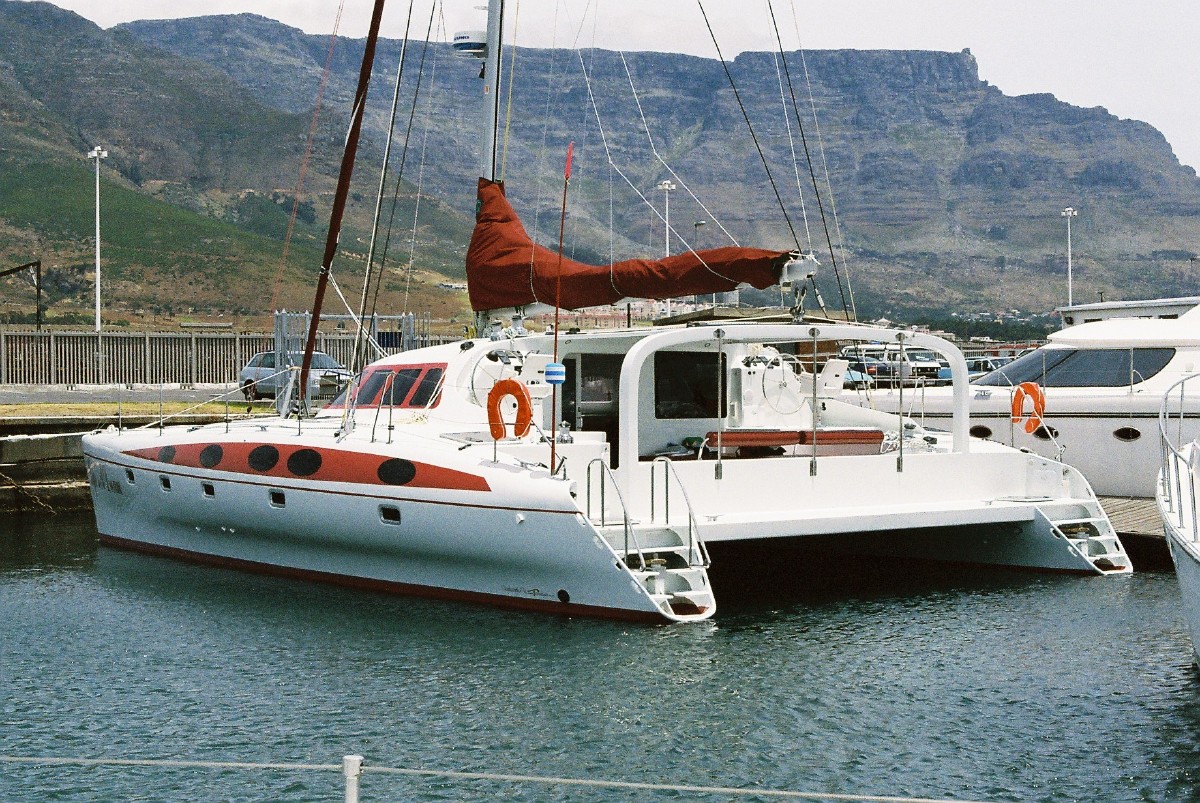

Shuttle 47 'Life's a Dream'

47ft Cruising Catamaran

Article - Sailing - Boat Review. Read more.

Completed around the world voyage 2011.

« All Projects

Gallery

Technical

  • General
  • Length Overall 42.5m
  • Beam 16m
  • Draft 1.12 m (1.6m to tip of rudder)
  • Displacement light 52 tonnes
  • Displacement cruising max (15,000 litres fuel) 67.6 tonnes
  • Fuel Cpacity 30,000 litres
  • Hull Construction Composite (Glass/Aramid/Foam)
  • Deck Construction Composite (Carbon/Nomex)
  • Performance
  • Speed Max 23.2 knots
  • Speed cruising 17 knots
  • Range at 10.5 knots 12,000 miles
  • Range at 17 knots 4,000 miles
  • Accomodation and Tenders
  • Owner and Guests 9
  • Crew 5-6
  • Tenders 4.9m and 3.1m RIBS
  • Propulsion
  • Main engine 1x Caterpillar C18 1150 hp @ 2300 rpm
  • Outrigger engines 2x Yanmar 110hp @ 3200 rpm
  • Generators 2 x 36 kw and 1x 26 kw
  • Fuel Consumption
  • Fuel consumption 10.5 knots - 20 tonnes fuel and water 25 litres per hour
  • Fuel consumption 10.5 knots - 3 tonnes fuel and water 17 litres per hour
  • Fuel consumption 13 knots - 20 tonnes fuel and water 60 litres per hour
  • Fuel consumption 13 knots - 3 tonnes fuel and water 40 litres per hour
  • Fuel consumption 17 knots - 20 tonnes fuel and water 130 litres per hour
  • Fuel consumption 17 knots - 3 tonnes fuel and water 100 litres per hour
  • Design and Build
  • Exterior Styling Shuttleworth Design Ltd
  • Naval Architecture Shuttleworth Design Ltd
  • Structural Design Shuttleworth Design Ltd & ASTA Ltd
  • Interior Styling Jepsen Design
  • Builder McConaghy Boats, China
